Textile machinery parts

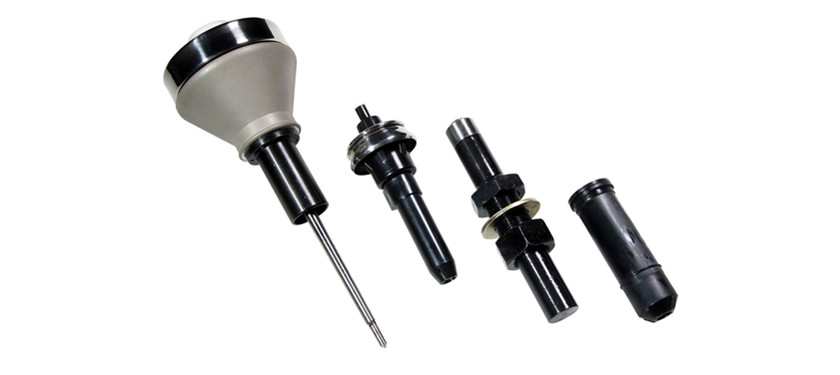

Spindle series False twister series
【Features】
Specification range: 84, 90, 110
The oil-bath elastic support structure can be better adapted to the spindle’s high-speed and vibration damping performance
Treated by superfinish machining and precise running balance processing technology, the spindle can run at the speed up to 14000 RPM( The running speed of high-speed type BD2111 ranges from 16000 to 18000RPM)
It boasts wide range of false twist and large package; the weight of the largest package is up to 2 Kg
The surface is applied with advanced plasma spray-coating technology to improve the performance of corrosion resistance and wear resistance
【Parameter】

Model No.

Product Name

Dimension

Applicable yarn

Features

Bearing Aperture

D2

D3

L

M

BD212

310 Chemical Fiber TFO  twisting spindle

Φ8.8

Φ28

Φ90

63

M25×1.5

Chemical Fiber

Universal

BD2111

310 Chemical Fiber TFO  twisting spindle

Φ8.8

Φ28

Φ84

63

M25×1.5

Chemical Fiber

High-speed

BD2141

110 Chemical Fiber TFO  twisting spindle

Φ8.8

Φ28

Φ110

63

M25×1.5

Chemical Fiber

Large package
